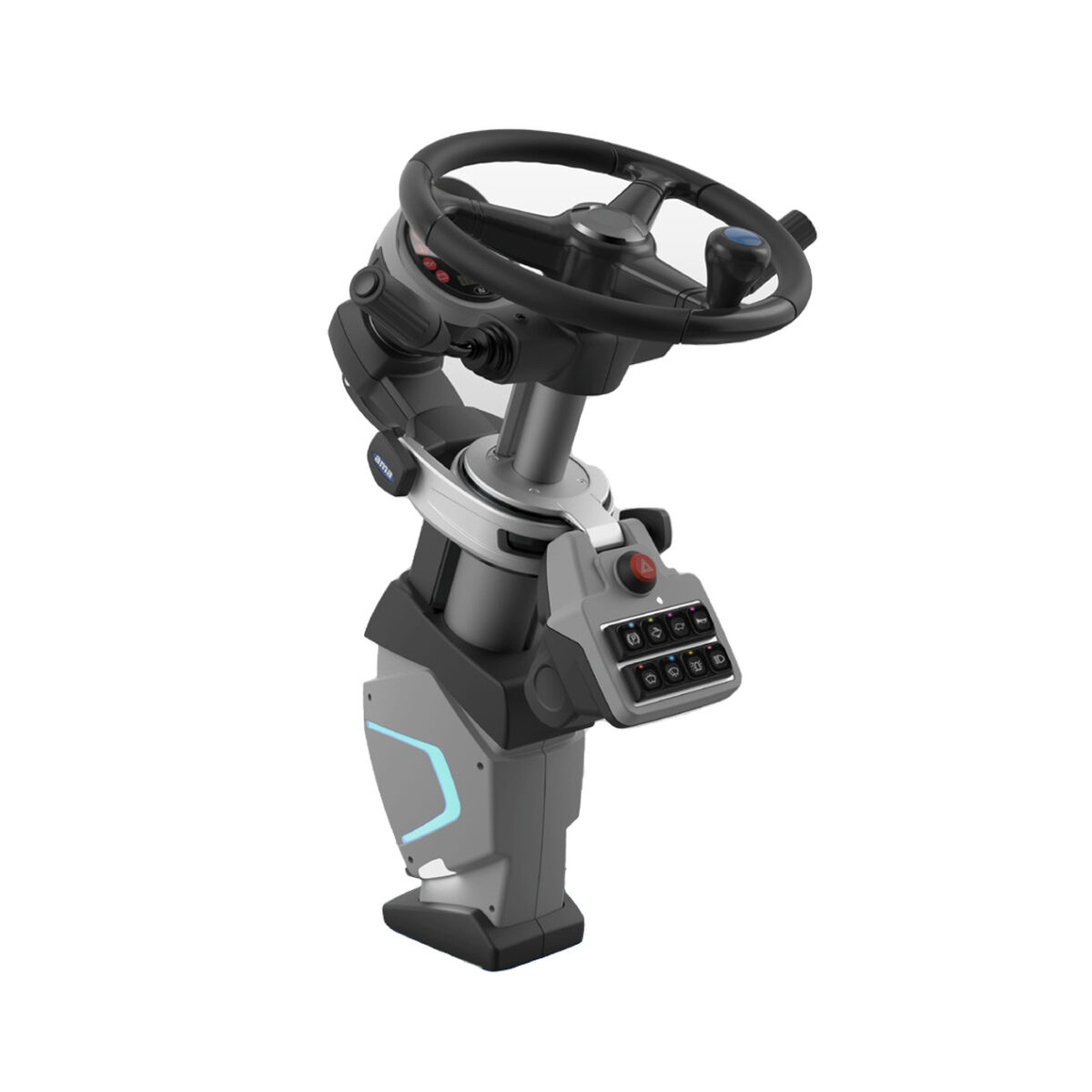

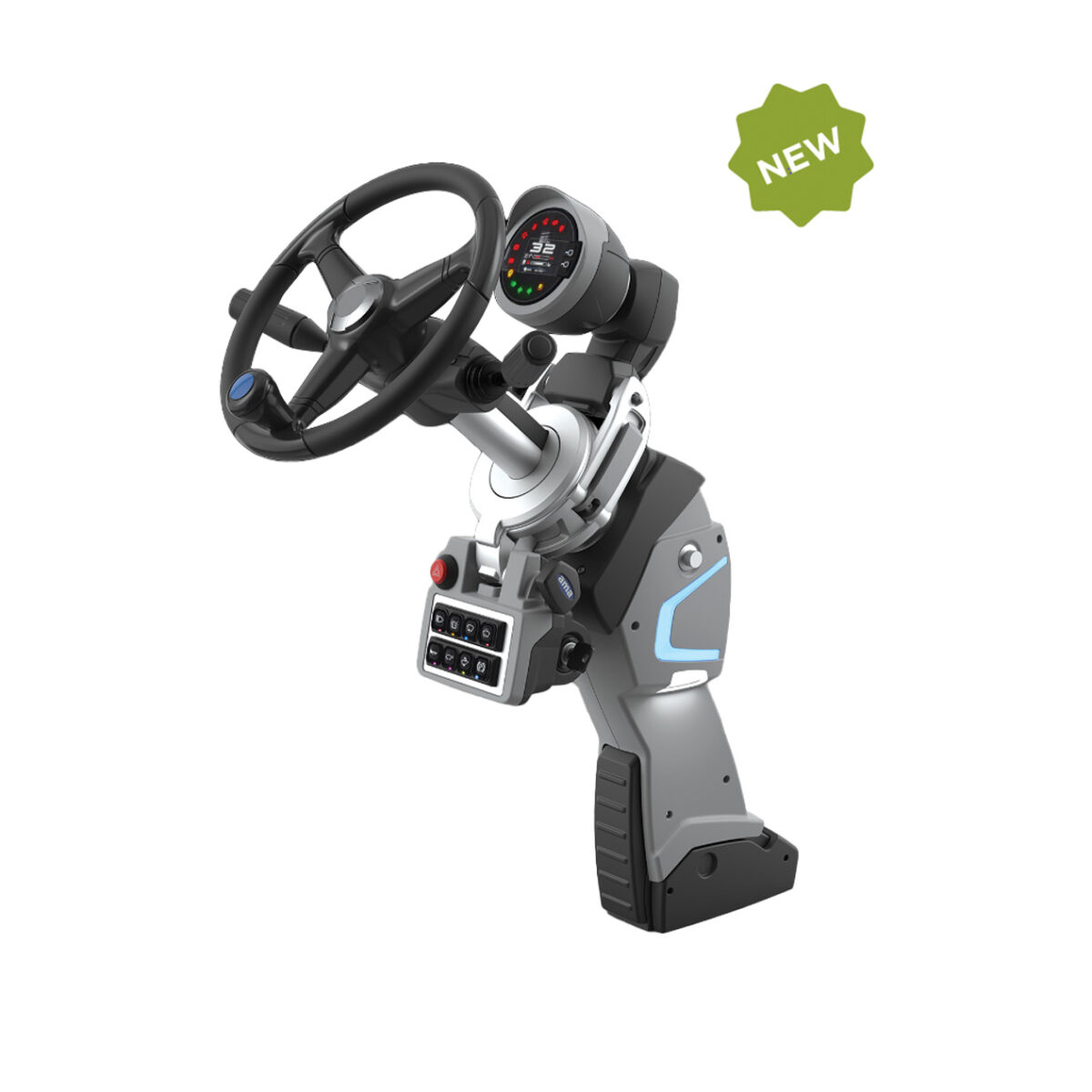

Complete Steering Module including:

• Adjustable steering column with connection for hy- draulic power steering.
• Plastic covers made via injection moulding (design and tools are property of AMA SpA).

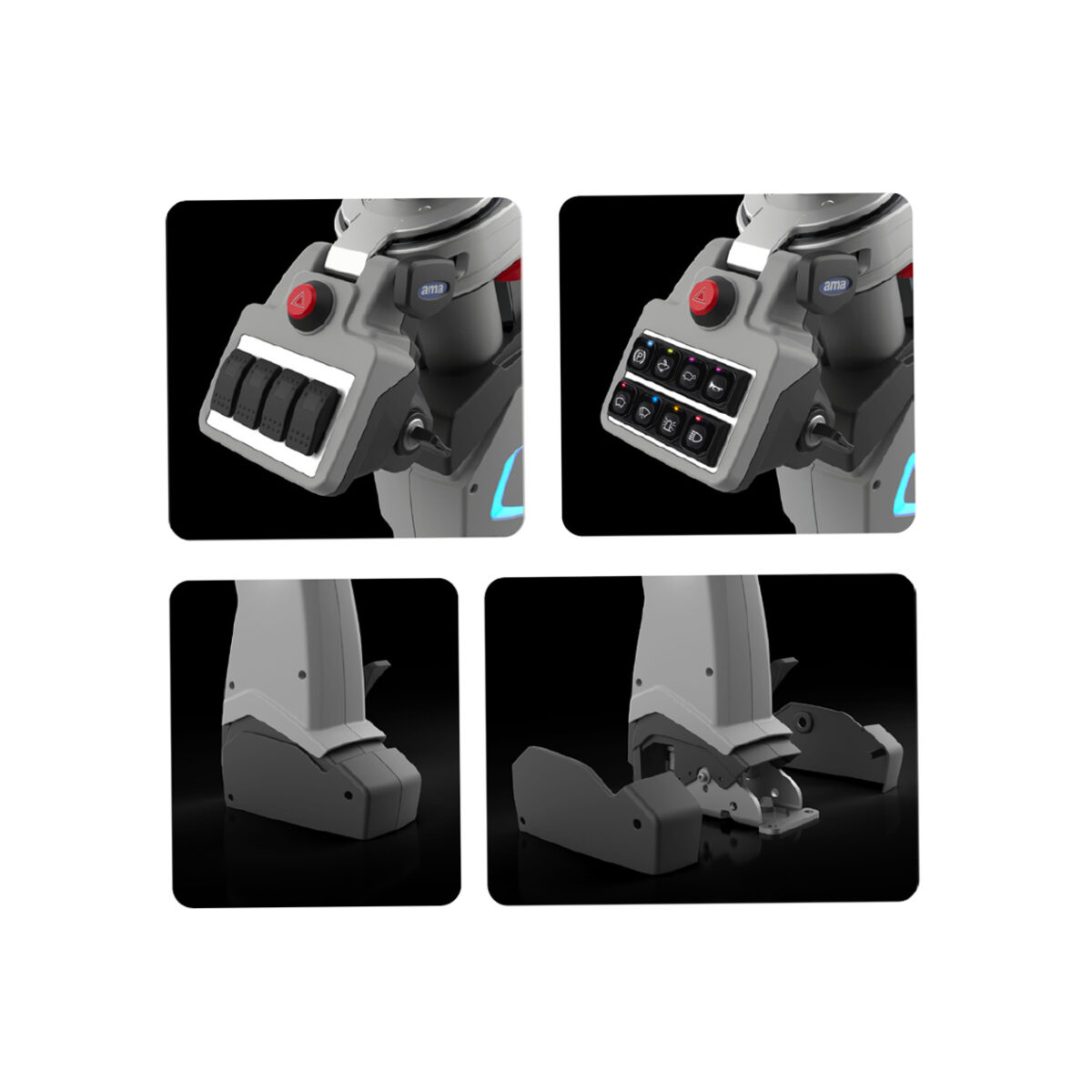

• Accommodation for multifunctional dashboard with 8
  different customizable functions + hazard lights button.
• Accommodation for instrumentation to be chosen from
  the available AMA models or per customer request.
• Accommodation for 1 or 2 stalk switch.
• Option for wiring harness (standar or customized).
• Option for courtesy light (LED) for pedal lighting.

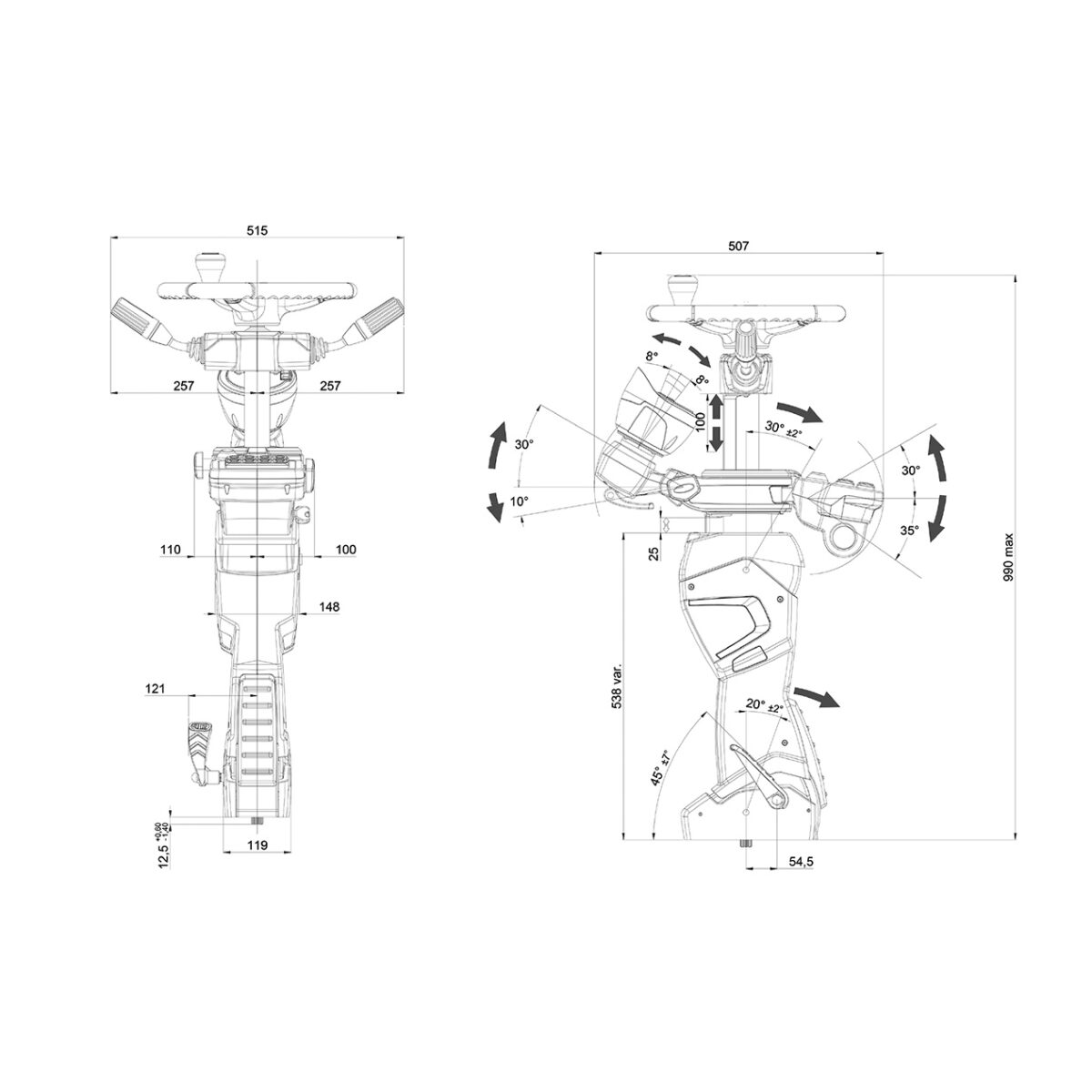

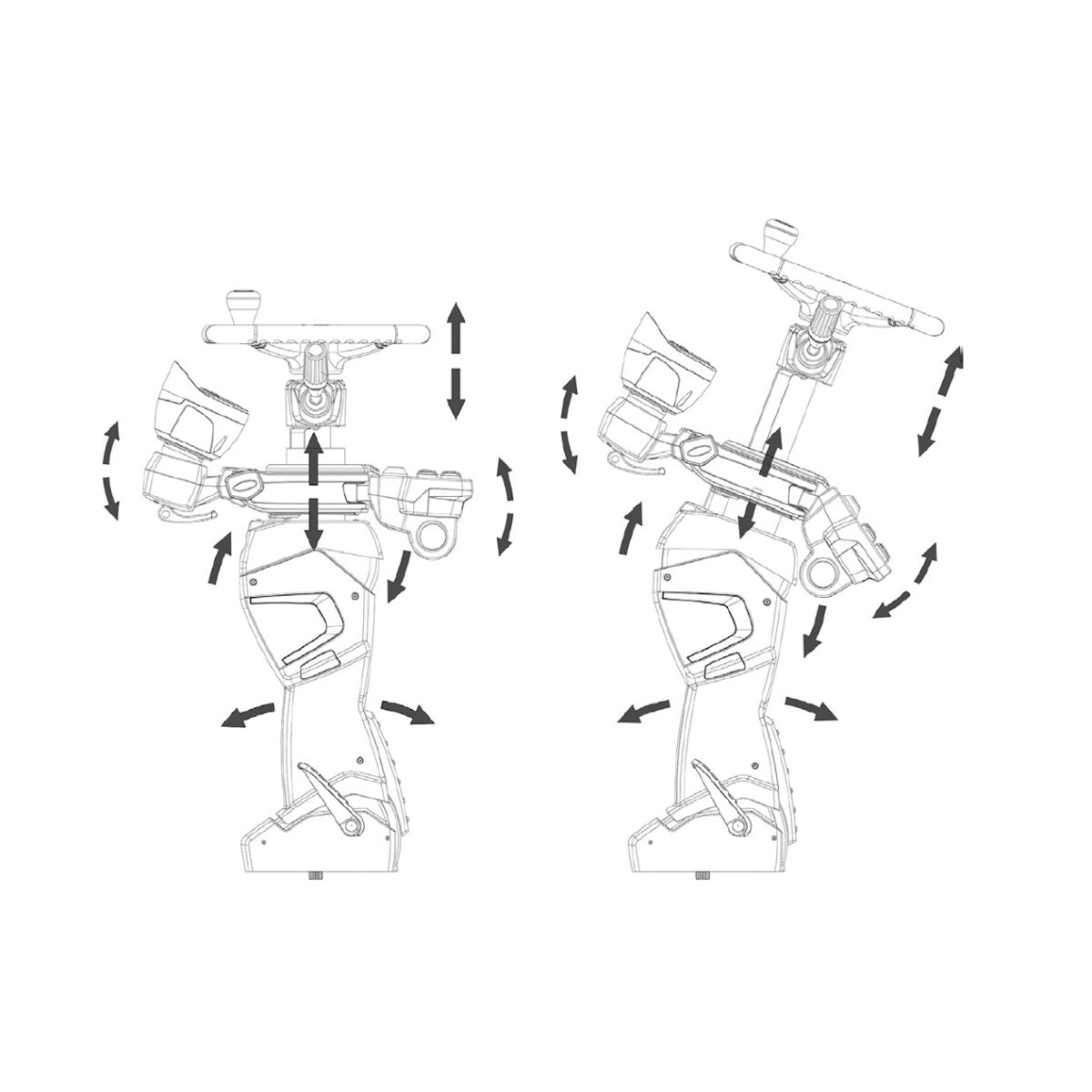

Multi-Tilt adjustment:

• Lower pivot located at the base of the column (ad- justment angle= 20°toward operator) operated by a dedicated foot pedal.
• Upper pivot located at mid column length (adjustment angle= 20°toward operator) operated by a dedicated push button.
• Adjustment pivot of multifunctional dashboard (30° upward referring to the horizontal plane , 35° down- ward referring to the horizontal plane) operated by a dedicated adjustment wheel.
• Vertical adjustment pivot of instrumentation (30° upward referring to the horizontal plane, 10° down- ward referring to the horizontal plane) operated by a dedicated push lever.

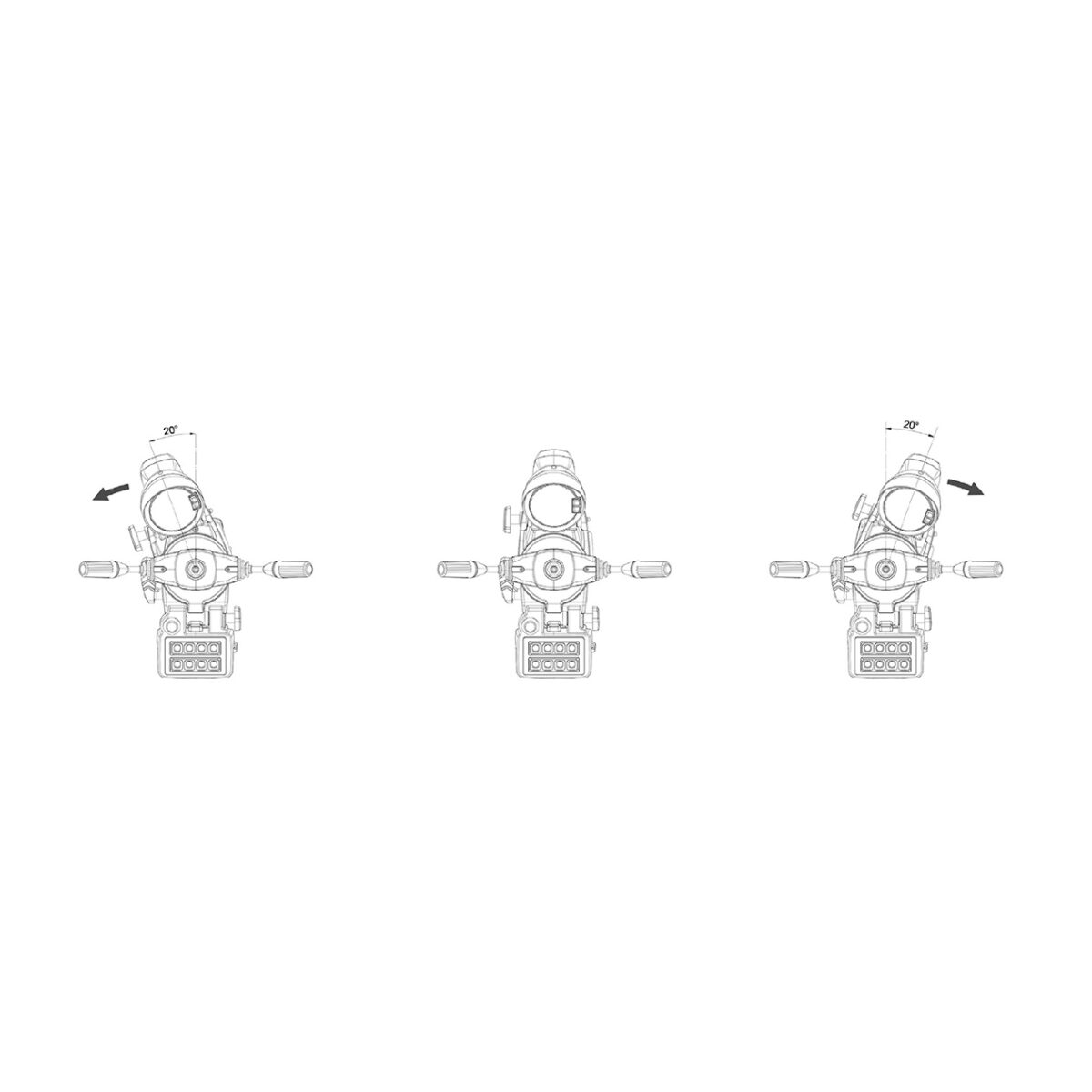

• Rotation adjustment pivot of instrumentation (+/- 8° referred to its axis) operated by a dedicated push lever
• FHorizontal adjustment pivot of instrumentation (20° to the right ; 20° to the left) operated by a dedicated push lever.

Dual Telescopic adjustment:

• Steering wheel + Stalk switch block adjustment (adjust- ment range: 100mm) operated by a dedicated knob located onto steering wheel hub.
• Instrumentation + Multifunctional dashboard adjust- ment operated by a dedicated push lever.
